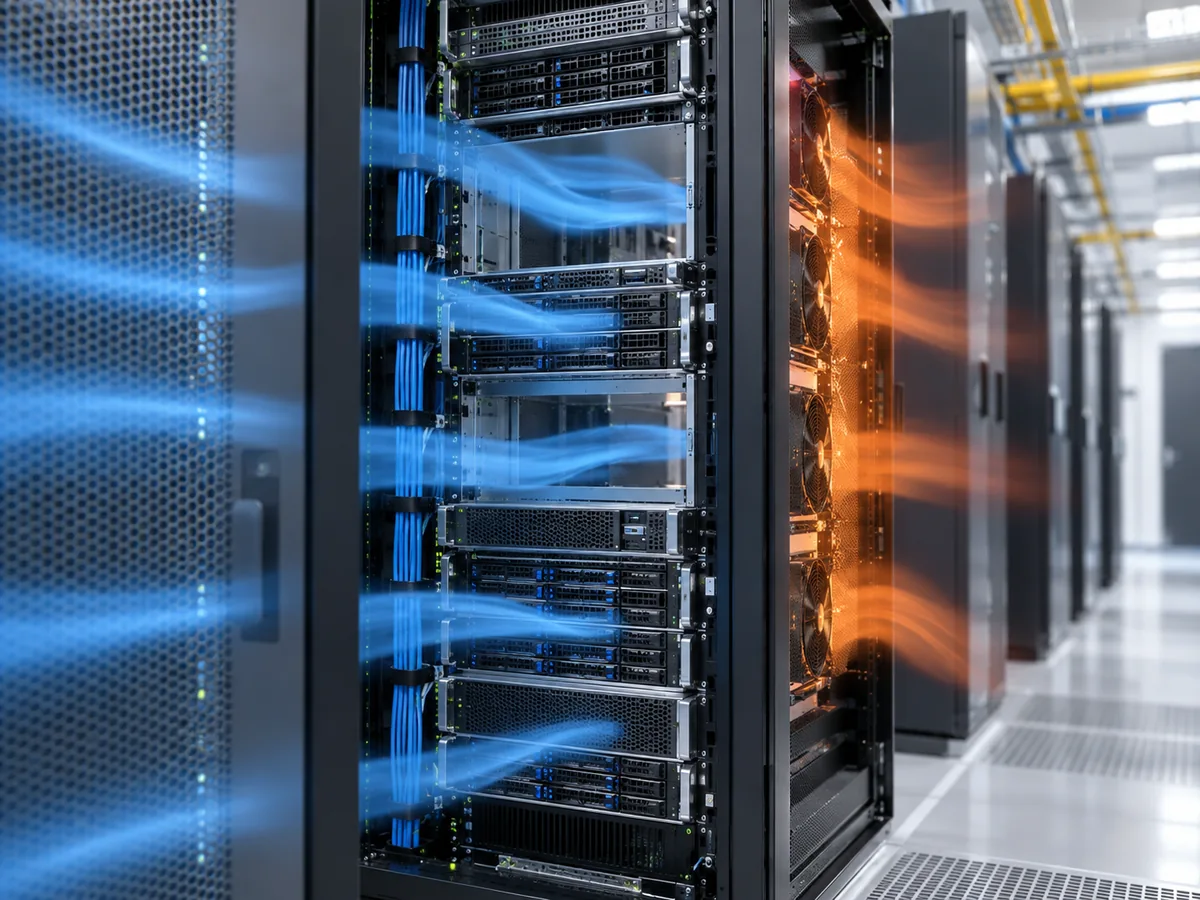

What this rack airflow calculator actually calculates
A rack consumes electrical power and ultimately rejects that energy as heat. When air is the heat-transfer medium, removing that sensible heat requires moving enough air through the temperature difference between the entering and leaving air streams.
This calculator starts with rack electrical load, determines how much of that load is assigned to the air side, converts the resulting kW to BTU/hr and applies the sensible-heat relationship between heat, airflow and temperature rise.
The result is an estimated airflow requirement in cubic feet per minute — CFM. The tool also converts that value to m³/h, calculates aggregate airflow across multiple racks and applies an optional planning margin.
The basic rack airflow equation
ASHRAE expresses sensible heat transfer through air using the relationship between airflow, temperature difference and an air-property factor. Under commonly used near-sea-level design conditions, that factor is approximately 1.1 when heat is expressed in BTU/hr, airflow in CFM and temperature difference in degrees Fahrenheit.
Rearranging the equation gives the airflow required for a known heat load:
The 1.1 value is not a universal physical constant. It is a convenient design approximation for particular air conditions. Air density, humidity, temperature and atmospheric pressure affect the sensible heat carried by each cubic foot of air.
At a 20°F ΔT, one air-cooled kW needs about 155 CFM
Apply the standard-condition equation to one kilowatt of heat:
That creates a useful concept-stage benchmark. At a 20°F rack air temperature rise and near sea level, every kilowatt rejected through air requires roughly 155 CFM before additional planning margin.
These figures are theoretical sensible-airflow values at standard conditions before airflow margin. They are not equipment ratings or proof that a particular rack can be cooled successfully with air.
ΔT changes the airflow requirement dramatically
Rack load alone does not determine CFM. The other major variable is ΔT: the temperature increase the air is allowed to experience while absorbing the rack's sensible heat.
A smaller ΔT means each unit of air carries away less heat, so more airflow is required. A larger ΔT allows the same heat load to be transported with less volumetric airflow.
This does not mean a design team should simply increase ΔT until the airflow number becomes convenient. The allowable temperature rise is constrained by the IT hardware, inlet-temperature requirements, server fan behavior, containment, cooling-unit operation and the actual air path through the room.
Rack inlet temperature and rack ΔT are different measurements
A server can receive acceptable inlet air while still experiencing a substantial temperature rise across the rack. Conversely, a theoretically acceptable rack ΔT does not guarantee that every server inlet is receiving sufficiently cool air.
This distinction matters because recirculated exhaust can raise rack inlet temperature without changing the theoretical airflow arithmetic. Bypass air can create the opposite problem: the room may appear to move large volumes of air while too little useful airflow actually reaches the IT equipment.
The calculator therefore treats ΔT as an input describing the intended heat-transfer condition. It does not claim that the selected ΔT will automatically be achieved in the physical room.
A 50 kW rack does not always put 50 kW into room air
The relationship becomes especially important in hybrid liquid-and-air-cooled racks. A rack may consume 50 kW electrically while cold plates or another liquid loop capture most of the component heat before it enters the room air.
If a 50 kW rack rejects only 30% of its heat to air, the airflow model should use 15 kW of air-side heat, not the full 50 kW.
At a 20°F ΔT and standard conditions, that 15 kW residual load corresponds to roughly 2,327 CFM before margin. Modeling the complete rack as 50 kW of air heat would overstate room airflow by more than three times.
Heat-capture percentage is therefore a critical hybrid-cooling input
Statements such as “the rack is liquid cooled” are not precise enough for airflow planning. The useful engineering question is what percentage of rack heat is actually removed by the liquid path and what percentage still reaches the air.
Pumps, CDUs and liquid loops may remove processor heat while memory, networking, power conversion or other components remain air cooled. Different hardware configurations can therefore produce different residual air loads even at identical total rack power.
The calculator's Heat rejected to air field makes that boundary explicit. Enter 100% for a fully air-side model, or the documented residual percentage for a hybrid rack.
At 100 kW, airflow becomes an architectural question
The arithmetic helps explain why very high rack density changes data center cooling design.
A theoretical 100 kW rack rejecting all heat to air at a 20°F ΔT requires roughly 15,510 CFM before margin. Ten identical racks would require more than 155,000 CFM at the rack level under the same simplified assumptions.
The difficulty is not that air suddenly stops carrying heat at a particular kW threshold. The difficulty is delivering very large airflow volumes to the correct rack positions without unacceptable pressure drop, bypass, recirculation, fan energy, acoustic impact or loss of usable space.
This is why rack density should not be evaluated using electrical kW alone. Power delivery and heat-removal architecture become tightly coupled as density rises.
Site elevation increases the CFM required for the same heat load
Air is less dense at higher elevation. A cubic foot of lower-density air carries less mass, so a larger volumetric flow is required to transport the same sensible heat through the same temperature rise.
ASHRAE's standard sensible-heat factors assume conditions close to sea level. Its Fundamentals guidance provides lower factors at elevation and describes a pressure-ratio correction for other altitudes.
This calculator applies that pressure-ratio approach to the approximate 1.1 sensible-heat factor. As elevation increases, the adjusted heat factor decreases and the required CFM increases.
Elevation correction improves concept-stage comparison but is not a substitute for a psychrometric calculation using the project's actual temperature, humidity and atmospheric conditions.
Airflow margin should not compensate for a bad air path
The design-margin field increases the calculated CFM after the theoretical heat balance. It can be useful during early planning when rack loads, operating states or final equipment selections are not yet fixed.
But adding 20% more airflow does not repair hot-air recirculation, unsealed rack openings or poor containment. Excess airflow can also create its own energy and control problems.
Treat margin as planning headroom, not as a substitute for airflow management.
CFM does not tell you the pressure the fan must produce
Two systems can require the same CFM and need very different fan power. Air moving freely into an open rack does not encounter the same resistance as air moving through raised-floor tiles, filters, containment, dense server chassis and long duct paths.
Fan selection therefore requires both airflow and pressure. This calculator estimates only the first. It does not calculate static pressure, system resistance or fan operating points.
CFM at the cooling unit is not automatically useful CFM at the rack
Room cooling capacity can look adequate while individual racks remain starved of air. The problem is distribution.
Some supply air can bypass IT equipment and return directly to the cooling system. Some hot exhaust can recirculate to server inlets. Local pressure differences can send more air to one rack and less to another.
Containment and air-management design are therefore part of the airflow model even though they are not represented by a single input in this calculator.
Why temperature measurements are useful when validating airflow
Directly measuring airflow at every rack can be difficult. Temperature patterns provide another way to identify whether the intended air delivery is working.
Vertiv describes ΔT and rack-area temperature monitoring as useful indicators when checking whether adequate airflow is reaching the equipment. Unexpected inlet temperatures or a departure from the intended temperature relationship can reveal distribution problems that a room-level airflow total hides.
That operational validation matters because this calculator predicts what airflow should be required by the heat balance. Sensors and commissioning show what the real installation is actually doing.
What this calculator deliberately does not model
The purpose of the tool is to answer a narrow planning question: approximately how much volumetric airflow corresponds to a given air-side rack heat load and ΔT?
It deliberately does not calculate:
- fan static pressure or fan power;
- raised-floor tile capacity;
- duct or plenum pressure drop;
- server-specific fan curves;
- hot-aisle or cold-aisle containment leakage;
- bypass airflow;
- hot-air recirculation;
- humidity or latent cooling load;
- CFD airflow distribution;
- failure-mode airflow after fan or cooling-unit loss;
- rack inlet-temperature compliance;
- liquid-loop sizing.
Those questions require equipment-specific data and a more complete thermal and airflow model.
How I would use the result during concept-stage planning
- Start with the actual or design rack electrical load rather than an assumed average data-hall density.
- Determine what percentage of that rack heat truly reaches the air. For hybrid racks, use the residual air-side load rather than total rack kW.
- Select a ΔT consistent with the intended equipment and cooling architecture.
- Enter site elevation if the facility is materially above sea level.
- Calculate rack-level CFM and multiply across the deployment only after confirming that the racks really share the same design basis.
- Add a planning margin deliberately rather than hiding uncertainty inside an arbitrary rack-load assumption.
- Compare the resulting airflow volume with the proposed physical air path, containment strategy and cooling-unit arrangement.
- If airflow becomes operationally awkward, evaluate whether lower rack density, a hybrid architecture or greater liquid heat capture produces a better system-level design.
Research basis and methodology
The core sensible-heat relationship follows the 2025 ASHRAE Handbook — Fundamentals, Chapter 18 . ASHRAE gives the commonly used sensible-air heat factor of approximately 1.1 Btu/h·cfm·°F under representative standard conditions and explains why different air conditions and elevation change that factor.
The thermal boundary also follows the same general heat-balance principle used in Schneider Electric's Calculating Total Cooling Requirements for Data Centers : electrical consumption ultimately appears as heat that the cooling system must remove, while the designer must define which loads belong inside the modeled boundary.
The discussion of ΔT as an operational airflow indicator is consistent with Vertiv's guidance on airflow delivery and temperature monitoring in data centers.
Methodology: the calculator is a concept-stage sensible-heat model. It uses standard thermal conversion factors, an ASHRAE-style sensible-airflow equation and an atmospheric-pressure correction for elevation. Final airflow and cooling design requires equipment-specific engineering and commissioning.
