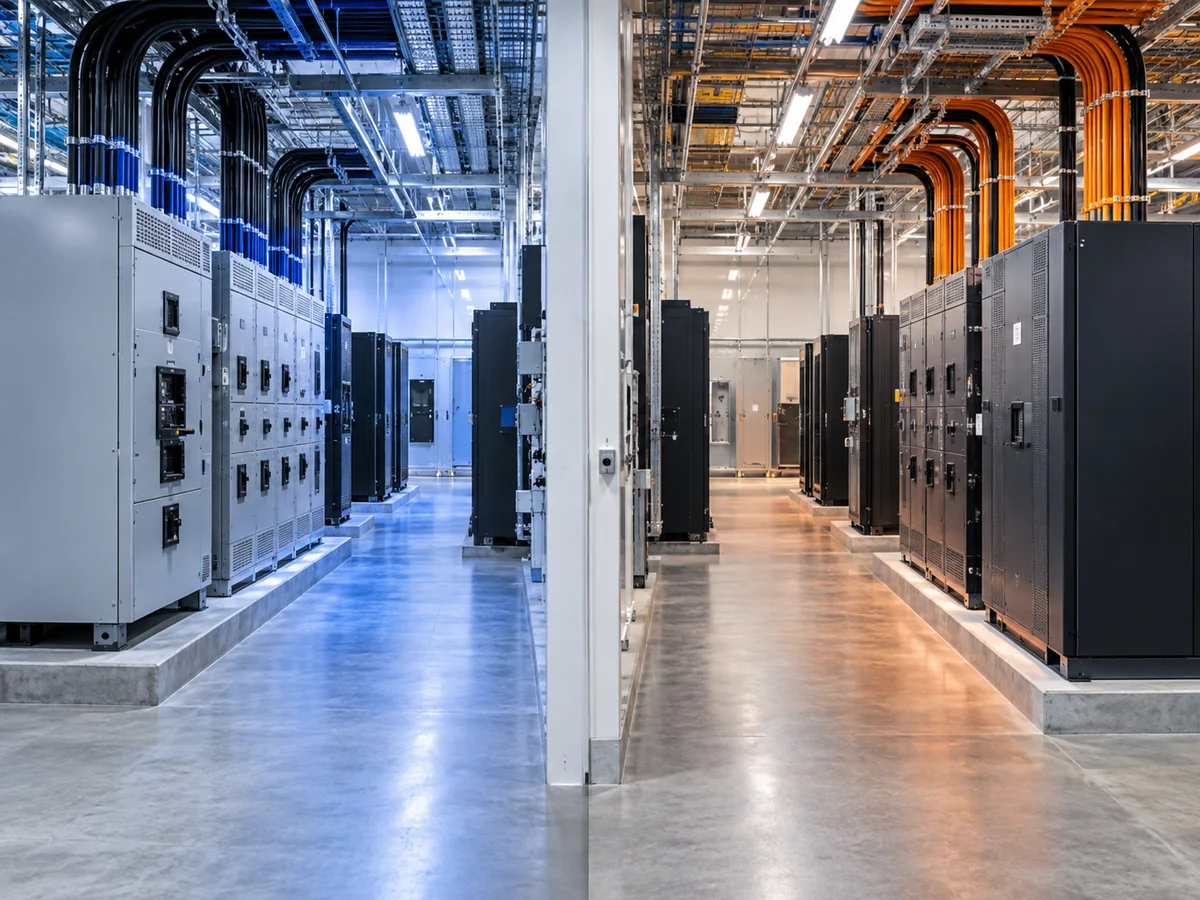

208V vs 415V Data Center Power Distribution

Moving from 208 V to 415 V does not make a data center use half as much electricity. It changes how that electricity is distributed.

That distinction matters because higher distribution voltage can carry the same three-phase power at much lower current. Lower current can mean smaller conductors, more capacity through a given distribution block, lower resistive losses and fewer downstream transformation stages.

But the comparison is often described badly. A 415/240 V architecture does not necessarily mean servers receive 415 V. In a four-wire Wye system, 415 V is the phase-to-phase voltage while approximately 240 V is available phase-to-neutral for single-phase IT loads.

So the useful comparison is not “208 V servers versus 415 V servers.” It is how the facility moves three-phase power toward the rack, and what voltage the rack PDU then presents to the IT equipment .

The first advantage of 415 V is simple: the same power needs less current

For a balanced three-phase load, real power is approximately:

Hold power and power factor constant. Current therefore moves approximately in inverse proportion to line-to-line voltage.

At the same power factor, a 415 V system needs only about 50% of the current required by a 208 V system for the same three-phase power:

A 100 kW example makes the difference visible

Ignore power-factor differences for a moment and use unity power factor purely to illustrate the electrical relationship.

A 100 kW balanced three-phase load at 208 V requires approximately:

The same 100 kW at 415 V requires approximately:

The power is unchanged. The current flowing through the distribution path has been cut almost exactly in half.

These examples use unity power factor to isolate the voltage-current relationship. Real equipment sizing uses the applicable power factor, continuous-load rules, breaker ratings, conductor ampacity, harmonics and engineering standards.

Schneider's 225 A example shows why this matters for capacity

Schneider Electric illustrates the same relationship from the opposite direction: hold current capacity constant and compare how much three-phase power the distribution system can provide.

Its data center pod-sizing example uses a 225 A breaker derated to 80%.

The breaker current did not double. The voltage did. That allows approximately twice the three-phase power to move through the same nominal current rating.

This is one reason higher-voltage architectures become more attractive as rack and pod density rise.

415 V distribution usually means 240 V at the single-phase IT load

The terminology is easy to misunderstand.

In a 415/240 V Wye architecture:

• 415 V exists between phases;
• 240 V exists from each phase to neutral;
• three-phase distribution can therefore run at 415 V;
• single-phase rack loads can receive approximately 240 V from phase to neutral.

Vertiv's current 415 V four-wire guidance describes exactly this approach: distribute at the higher three-phase voltage and provide 240 V single-phase power directly to the rack.

The exact topology varies by facility. The important architectural opportunity is eliminating a downstream voltage-conversion stage where it is otherwise required.

Removing a transformer can save more than its electrical losses

A transformer occupies floor area, costs money, produces heat, requires protection and maintenance, and introduces another piece of equipment into the distribution path.

If a 415/240 V architecture allows that downstream transformer to be removed, the benefit is therefore not only the transformer's conversion efficiency.

It can also reduce:

• equipment count;
• white-space or electrical-room footprint;
• installation complexity;
• heat released by distribution equipment;
• maintenance scope;
• potential failure points.

Eaton's long-standing comparison of 208/120 V and 415/240 V data center distribution shows the 208 V architecture with a downstream transformer, while the 415 V architecture can distribute directly without that transformer inside the data center.

Higher voltage also changes conductor economics

The lower current required for the same power can reduce conductor requirements, although actual cable sizing is governed by much more than the simple current calculation.

Ampacity, voltage drop, installation method, ambient temperature, bundling, fault current, protective-device coordination and applicable electrical codes all matter.

Still, the physical direction is straightforward: transporting 100 kW at roughly 139 A creates a different distribution problem from transporting the same 100 kW at roughly 278 A.

Schneider's current guidance for retrofitting data centers for AI clusters makes this point directly: lower-voltage 120/208 V systems can become inefficient to scale, while 240/415 V architectures can reduce conductor bulk and improve distribution efficiency.

The I²R relationship explains why lower current can reduce losses

Resistive conductor loss follows:

Because current is squared, reducing current has a strong effect on loss for an otherwise identical resistance.

If current were reduced exactly by half while resistance remained unchanged:

That mathematical result does not mean converting a real data center from 208 V to 415 V automatically cuts total electrical losses by 75%.

Real designs change conductor sizes, lengths, transformer stages, equipment efficiencies and operating loads at the same time. The equation explains why lower current is valuable; it is not a complete facility-efficiency prediction.

High-density racks make current a physical design problem

At low rack density, the difference can look like an optimization. At very high density, it can become an architectural constraint.

Our GPU rack power analysis covers current rack-scale AI systems in the 120–142 kW design range, with future hardware roadmaps moving beyond 200 kW.

Sending that much power into one rack using low-voltage distribution requires very large current, large connectors or multiple feeds.

Higher voltage does not eliminate the difficulty, but it reduces the current associated with a given power level and therefore gives the downstream distribution designer more room to work.

208 V remains entirely rational in many existing facilities

None of this means every 208 V data center should be converted.

Existing facilities can already have large installed investments in:

• UPS systems;
• PDUs and transformers;
• RPPs and busway;
• rack PDUs;
• branch circuits;
• connectors;
• monitoring and protection;
• operating procedures and spare parts.

If rack density remains modest and the installed infrastructure has sufficient capacity, replacing that system merely to obtain a more elegant voltage architecture can have a weak business case.

Retrofit economics should compare the actual bottleneck with the actual cost of changing it.

A greenfield design and a retrofit should not make the decision the same way

A higher-voltage greenfield architecture can avoid installing equipment that a retrofit may already own and have decades of remaining life.

The neutral becomes a first-class design component in 415 V four-wire systems

A 415/240 V four-wire topology includes a neutral because single-phase IT loads are supplied phase-to-neutral.

That means the upstream equipment must be designed for the way those loads behave.

Vertiv specifically identifies several requirements for compatible four-wire UPS architecture:

• neutral-conductor management;
• independent phase regulation;
• control under unbalanced single-phase loading;
• appropriate phase-to-neutral and ground-fault protection;
• proper protection coordination.

So “remove the transformer and use 415 V” is not a complete design instruction. The UPS, switchgear, grounding, protection and monitoring architecture have to support four-wire operation.

Phase balance still matters even when total rack power looks acceptable

Three-phase capacity is easiest to use efficiently when load is distributed reasonably evenly across the phases.

A rack PDU may receive three-phase power while many downstream devices are still single-phase. If those loads accumulate disproportionately on one phase, that phase can reach its current limit before the arithmetic total of the rack PDU suggests it should.

Monitoring therefore needs to look at per-phase current and power, not only aggregate kW.

The same principle applies at row, busway and panel level.

415 V does not remove the need to check server input compatibility

Modern IT power supplies commonly support broad input-voltage ranges, but a facility should never assume compatibility from the architecture name alone.

The actual rack output voltage, connector, frequency, rack PDU rating and IT power-supply specification all have to match.

Eaton currently sells rack PDUs designed for both 208 V and 415/240 V environments, while Schneider offers rack PDUs with 415 V three-phase inputs and 240 V outputs. That demonstrates ecosystem availability; it does not make every existing server or rack configuration automatically compatible.

Higher voltage can increase available rack power without increasing feeder current

For density planning, this may be the most intuitive way to think about the change.

These are mathematical three-phase apparent-power values using √3 × V × I, before continuous-load derating, power factor, code requirements or equipment-specific limits.

Protection and fault-current studies do not disappear at higher voltage

Distribution voltage is only one variable in electrical-system design. Higher-density power architectures may also change available fault current, breaker selection, interrupting ratings, selective coordination and arc-flash exposure.

Schneider's 2026 AI retrofit guidance specifically highlights fault current and arc-flash considerations as operators increase distribution capacity for high-density clusters.

A voltage migration should therefore be studied as a system architecture change, not simply as a way to fit more kW through one conductor.

The efficiency case should be measured across the complete power path

A good comparison should include every stage between the utility or medium-voltage source and the IT power supply.

Removing one transformer can improve the path. Reducing current can reduce resistive loss. But comparing two architectures requires the measured or specified efficiencies of all the remaining equipment.

The best voltage depends on the distribution problem you are solving

I would frame the decision around four questions.

For AI racks, 415 V may be an intermediate step rather than the endpoint

Rack power is rising quickly enough that even 415 V AC is not the end of the architecture discussion.

Schneider's 2026 work on next-generation AI infrastructure discusses rack-level 800 VDC architectures as the industry prepares for power densities beyond the practical limits of conventional lower-voltage distribution.

That does not make 415/240 V obsolete. It puts it in context.

For many conventional and high-density data centers, moving from 208/120 V toward 415/240 V materially reduces current and simplifies the downstream AC path. At extreme future AI densities, the industry is investigating another voltage step again.

What I would compare before choosing 208 V or 415 V

1. Define the target rack and pod kW, including future density rather than only today's average.
2. Calculate three-phase current at each candidate distribution voltage.
3. Map every transformer and conversion stage in the complete power path.
4. Compare feeder, busway and protection requirements rather than voltage alone.
5. Confirm UPS architecture, neutral handling and phase regulation.
6. Confirm rack PDU, connector and IT power-supply compatibility.
7. Model normal and failure-state phase loading.
8. Review fault current, selective coordination and arc-flash studies.
9. Compare conversion and conductor losses using equipment-specific data.
10. For a retrofit, price the stranded value and disruption created by replacing existing infrastructure.

208 V versus 415 V is ultimately a capacity architecture decision

The strongest argument for 415/240 V is not that “higher voltage is more efficient” in the abstract.

It is that higher distribution voltage moves a given amount of three-phase power at materially lower current .

That lower current can simplify conductors and high-density distribution. A four-wire architecture can also make 240 V phase-to-neutral available directly to IT racks and, in the right topology, eliminate downstream transformation.

The strongest argument for retaining 208 V is equally practical: existing infrastructure may already support the required density, the equipment ecosystem is mature, and the cost and operational risk of conversion may exceed the incremental benefit.

For greenfield high-density designs, 415/240 V deserves serious consideration. For existing facilities, the answer should come from the bottleneck, not from the voltage label.

Research basis and methodology

The current architectural comparison is informed by Vertiv's 2026 guidance on 415 V four-wire distribution . Vertiv describes direct 240 V single-phase delivery to racks, reduced downstream conversion stages and the UPS requirements associated with neutral and unbalanced single-phase loads.

Schneider Electric's 2026 AI power-system retrofit guidance provides current context on the scaling limits of 120/208 V distribution and the use of 240/415 V architectures for higher-density loads.

Schneider's Rack Powering Options for High Density provides the broader framework for choosing rack voltage, phase count, feeds, connectors and redundancy.

Eaton's data center distribution material is also used for the architectural distinction between traditional 208/120 V transformer distribution and 415/240 V distribution without the same downstream transformer stage.

Methodology: numerical examples use the standard balanced three-phase relationship √3 × V × I and are intended to explain architecture, not size electrical equipment. Final design requires applicable electrical codes, equipment ratings, conductor calculations, protection studies and qualified electrical engineering.
